System type: 1 unit six-order band pass
Continuous power: 800W
Maximum power: 1600W
Peak power: 3200W
Nominal impedance: 8 OHMS
Recommended rated output power of amplifier: 1000W—1400W@8 OHMS
Sensitivity: 101dB (1W@1m)
Maximum sound pressure level (Pmax@1m): 130dB@800w (133dB@1600w)
Pointing characteristic (-6dB): 360°H×360°V
Frequency bandwidth (-10dB): 45Hz—300Hz
Transducer configuration: low frequency driver 18 "(455mm unit 100mm voice coil) × 1
Connector: SPEAKON NL4×2
PIN1+/2+POS.
PIN1-/2-NEG.
Box material: 18mm (0.7″) high-quality birch plywood
Color: The default is black, other colors can be customized according to requirements

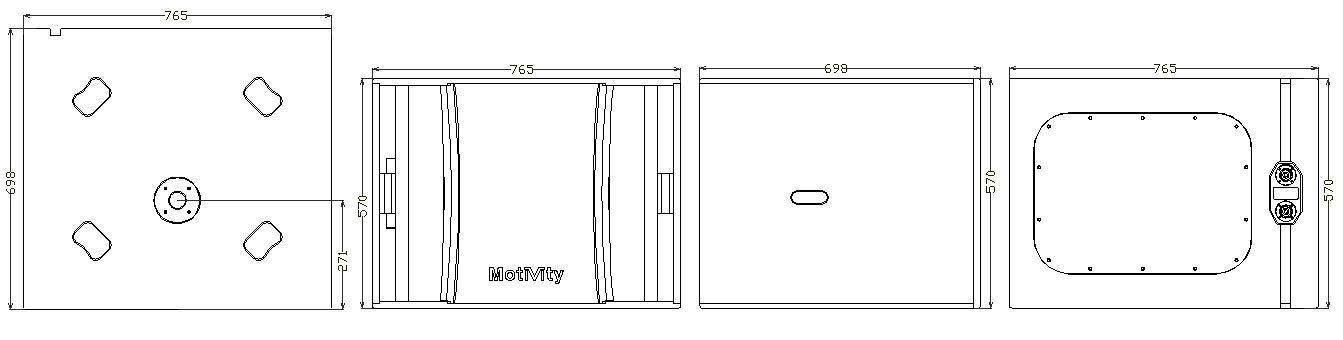

Box size: W765mm*D698mm*H 570mm
Weight (each): 54.30 kg
Gross weight (single pack): 59.95kg
